High brightness professional 4K UHD laser projector
Spectacular 4K UHD image quality, low maintenance and ultimate reliability

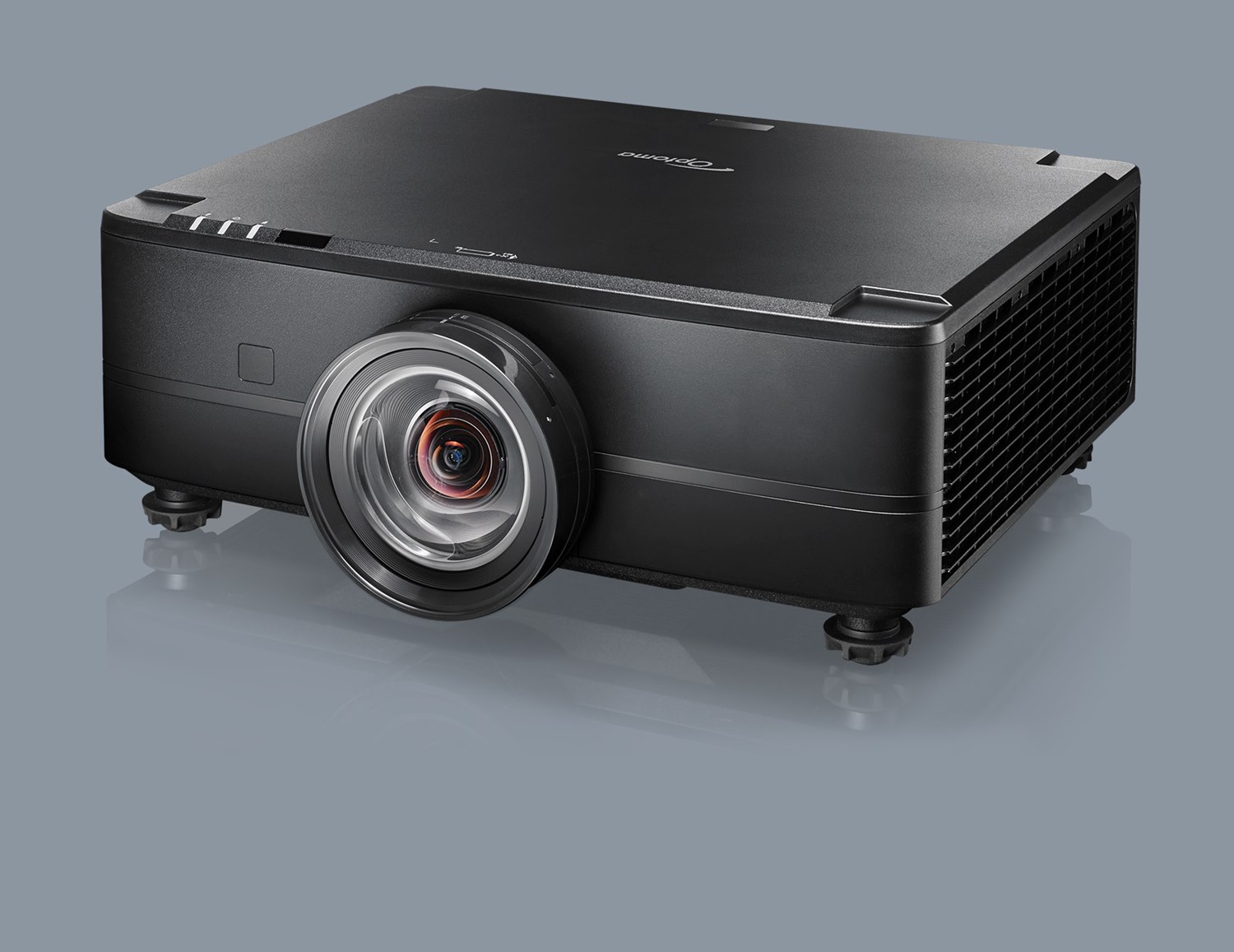

The ZK810TST 4K UHD laser projector is perfect for fixed installations within education, museums, houses of worship, large venues, simulation or immersive applications.
Delivering an astonishing 30,000 hours, the ZK810TST combines a long-lifetime light source and an independent IP5X certified optical engine for 24/7 operation capabilities, offering truly maintenance-free projection.
With high brightness, colour precision and quiet operation, along with a fixed standard throw lens making this projector the ideal solution for a variety of end user scenarios and professional environment.
The added control flexibility of HDBaseT 3.0, RS232, LAN, OMS and OSS makes this projector an affordable install and forget solution.
8500 lumen 4K UHD DuraCore laser projector
High brightness for immersive installations
Full motorised lens shift
Ideal for a simple set-up
Dust resistant
Independently tested, IP5X certified
Long life
Delivers 30,000 hours of virtually maintenance free operation
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
True 4K UHD resolution
Ultra HD 4K resolution delivers sharper, life-like images and richer colours - allowing you to sit closer to the screen and enjoy a more immersive experience.
Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That's four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.
HDR and HLG compatible
Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.
Full lens shift
Full lens shift makes installation simple and hassle free, offering the flexibility to move the projected image vertically or horizontally, as well as adjusting the screen size without the need to move or reposition the projector.
Four corner correction
Adjust the keystone in both the vertical and horizontal plane. You can individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.
IP5X Dust resistant optical engine
Independently tested and certified to IEC standard 60529 with an IP5X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; paramount for 24/7 maintenance free operation in challenging environments.
360 projection*
With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
*For more information please refer to the user manual
Portrait projection
Ideal for digital signage applications you can rotate your projector 90 degrees to project a portrait image.
Game mode
Game mode optimises your projector for maximum contrast and vivid colours to capture every detail - leaving you time to focus on winning.
HDBaseT™
Uncompromising, uncompressed Full HD video, audio, network and control commands all delivered on a single CAT- type cable capable up to 100 metres/328 feet without signal loss makes installation hassle-free. HDBaseT™ simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.
Colour Management System (CMS)
Display accurate lifelike colours to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the colour settings of your projector for optimal precision.
True AV mute
True AV mute enables the light source of the projector to be instantly switched off and on at the press of a button. Unlike standard AV mute functionality no light is emitted from the projector, this gives 100% blackout on screen.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
Wired remote
The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.
Customise your projector
Have your projector in any colour. Choose from any RAL colour. Perfect for bespoke installations. *Contact us for more information
Direct power off
Power off your projector immediately or directly at the mains. This means you don’t have to wait for the projector to cool down before turning it off.
Constant power
Allows users to set the power levels to meet individual installation requirements. Power levels can be managed to obtain the brightest picture or longest light source life - or anywhere inbetween
Constant brightness
Advanced light sensing technology allows the setting of brightness levels that will remain unchanged over time. Ideal for ensuruing constant brightness for fine tune installations
Telnet
This model is able to receive comands via telenet allowing for easy installation with Telnet compatible control systems.
Control
Featuring a wide range of options you can control and monitor the projector remotely.
• RS232 Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer
• Extron IPLink compatible Allows for easy installation with Extron control systems
Display/image
| Display technology | DLP™ |
| Resolution | UHD (3840x2160) |
| Brightness | 8,500 lumens |
| ANSI brightness | 7,200 |
| Contrast ratio | 3,000,000:1 |
| Contrast ratio - full on/off | 1,100:1 |
| Native aspect ratio | 16:9 |
| Aspect ratio - compatible | 4:3,16:9,16:10 |
| Keystone correction - horizontal | +/-30° |
| Keystone correction - vertical | +/-15° |
| Displayable colours (millions) | 1073.4 |
| Horizontal scan rate | 15.375~91.146Khz |
| Vertical scan rate | 24~85Hz |
| Uniformity | 95% |
| Screen size | 0.76m ~ 25.4m (30" ~ 1000") diagonal |
Lamp info
| Light source type | DuraCore MultiColor Laser |
| LASER life | 30,000 hours |
Optical
| Throw ratio | 0.65:1 ~ 0.75:1 |
| Projection distance (m) | 0.7m - 16.6m |
| Zoom | 1.15 |
| Zoom type | Motorised |
| Focal length (mm) | 9.69~11.19 |
| Lens shift | Vertical: +/-50%, Horizontal: +/-18% |
| Lens shift | Yes |
Connectivity
| Connections | | Inputs 2 x HDMI 2.0, 1 x USB-B service, 1 x 3D sync, 1 x Wired remote | | Outputs 1 x HDMI 2.0, 1 x USB-A power 1.5A, 1 x Audio 3.5mm, 1 x 3D sync | | Control 1 x HDBaseT 4K, 1 x RJ45, 1 x 12V trigger, 1 x RS232 |
|
| LAN - wireless networking | No |
General
| Noise level (min) | 34dB |
| Noise level (max) | 38dB |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock |
| IP rating | IP5X |
| OSD / display languages | 11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish |
| 24/7 operation | Yes |
| 360° operation | Yes |
| Remote control | Backlit ProAV remote |
| Speaker count | 2 |
| Watts per speaker | 10W |
| In the box | QSG
Back lit remote control
Power cable
AAA Batteries |
Networking
| LAN - control | Yes |
| LAN - wireless networking | No |
| LAN | Yes |
Power
| Power supply | AC 100 – 240 V @ 50/60 Hz |
| Power consumption (standby) | 0.5W |
| Power consumption (min) | 280W |
| Power consumption (max) | 530W |
Weight and dimensions
| Dimensions (W x D x H) mm | 486 x 432.5 x 185.5 |
| Gross weight | 18.7 kg |
| Net weight | 15 kg |
